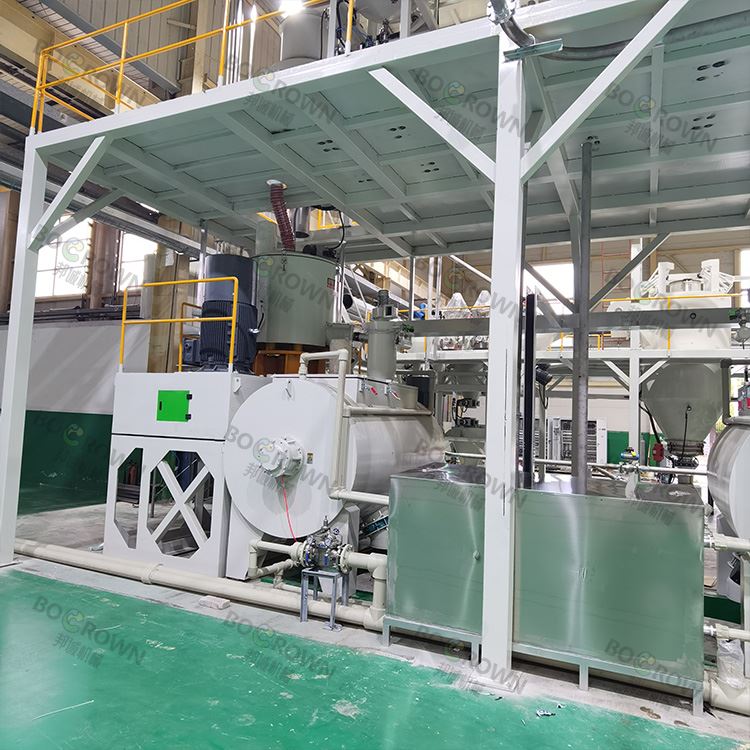

Automatic Central Feeding System
Dab tsi yog qhov automated centralized khoom noj system?
Tsis Siv Neeg Central Feeding System (ACFS) yog ib qho kev noj zaub mov ntse uas siv dav hauv kev lag luam plastics. Nws feem ntau thauj cov ntaub ntawv raw tau txais los ntawm qhov chaw cia rau ntau yam khoom siv (xws li txhaj tshuaj molding tshuab thiab extruders). Los ntawm kev tswj hwm hauv nruab nrab, lub kaw lus ua kom muaj kev sib koom ua ke ntawm ntau lub tshuab, txhim kho kev tsim khoom thiab txo cov nqi zog.
Ua hauj lwm hauv paus ntsiab lus ntawm tsis siv neeg centralized pub system
Lub automated centralized feeding system siv lub tshuab nqus tsev conveying tshuab los thauj cov yas granules los yog hmoov los ntawm raw khoom cia tank rau ntau yam khoom siv. Lub kaw lus tsuas yog muaj lub hauv paus tswj hwm, lub tshuab nqus tsev twj, cov kav dej, qhov chaw faib khoom, thiab cov hoppers.
Txoj haujlwm ua haujlwm yog raws li nram no:
1. Cov ntaub ntawv raw yog nyob hauv nruab nrab hauv lub tank cia.
2. Lub tshuab nqus tsev twj tso kua mis ua rau lub siab tsis zoo rau kev thauj khoom.
3. Thauj mus rau ntau yam khoom siv los ntawm cov kav dej.
4. Tsis siv neeg tis valve precisely tswj cov khoom noj txoj kev.
5. Ua tiav kev pub mis tsis tu ncua
Core Product Advantages
Txhim kho ntau lawm efficiency
Tsis Siv Neeg Central Pub Tshuab tuaj yeem muab 24-teev pub noj tas li, txo cov kev cuam tshuam ntawm phau ntawv, txhim kho kev ua tau zoo tag nrho, thiab tshwj xeeb tshaj yog tsim rau cov kab ntau lawm.
01
Txo cov nqi zog
Cov khoom siv hluav taws xob tsis siv neeg txo cov kev xav tau ntawm kev tuav tuav thiab pub mis, txo nqi zog rau kev lag luam.
02
Xyuas kom huv si ntawm cov khoom siv raw
Lub kaw lus kaw kaw tsis txhob muaj plua plav paug thiab ya raws kev puas tsuaj rau cov khoom siv raw, yog li txhim kho cov khoom zoo stability.
03
Intelligent centralized tswj
Nruab nrog PLC tswj qhov system, nws ua rau kev saib xyuas cov chaw taws teeb, lub tswb tsis siv neeg, thiab kev tswj cov ntaub ntawv, ua haujlwm yooj yim dua.
04
Yooj yim heev thiab scalable
Lub kaw lus txhawb nqa ntau- tshuab txuas thiab tuaj yeem nthuav dav cov khoom siv raws li kev xav tau ntau lawm.
05
Daim ntawv thov kev lag luam
Automated centralized khoom noj tshuab tau dav siv hauv cov hauv qab no:
● Yas txhaj tshuaj molding kev lag luam
● Extrusion Moulding Kev Lag Luam
● Tshuab moulding kev lag luam
● Automotive qhov chaw tsim khoom
● Kev tsim khoom siv hauv tsev
● Ntim cov khoom siv ntau lawm
Technical parameters
- Conveying method: Vacuum negative pressure conveying
- Thawv muaj peev xwm: 200-3000 kg / h (customizable)
- Tswj system: PLC + kov npo
- Cov khoom siv yeeb nkab: Stainless hlau / Antistatic yeeb nkab
- Pub nrug: Txog 100 meters (customizable)
Vim li cas thiaj xaiv peb Centralized Feeding System?
✔ Lub Hoobkas ncaj qha khoom, tus nqi tseem ceeb
✔ Txhawb kev tsim kho kev daws teeb meem
✔ Siv siab - cov khoom tseem ceeb zoo rau kev ua haujlwm ruaj khov
✔ Kev ua tiav tom qab- kev muag khoom thiab kev txhawb nqa
✔ Kev ua haujlwm dav dav, npog cov ntawv thov thoob plaws ntau qhov kev lag luam.
